wiring for rear light in cargo area

[buckinbronc85]

i was wanting to hook up a rear light in my back of the bronco but i cant get it to work. i found the sensor for the door and it has red, black, and green. i hooked the light ,white to the red and black to black and nothing happen. so then i tried the green and white and the black to black and the samething nothing. i have check the light directly to the battery it's work. so idk what wrong with it. any ideas well be appreciated.

thanks,

dustin



[Broncosaurus!]

I tapped mine into my dome light, only two wires, no errors possible. Also, take a current tester to see if where you are tapping into has power.



[broncoRPG]

so you have two wires at the dome light? I think he could only find one. BTW, did your light only have white and black wires?



[Broncosaurus!]

my dome light only had 2 wires, as did the neons I hooked to it. One of the mounting screws was the ground on the dome light too. And I JUST figured out that my headlight switch turns to adjust my panel lights and I can even turn the dome light on with it, and for the last 4-5 months I've been using a wooden bat to keep my door open. Now I don't really have a good excuse for carrying a lousiville slugger around anymore.



[Seabronc]

Diagram of Bronco courtesy lights attached.

Good luck,

>-



[buckinbronc85]

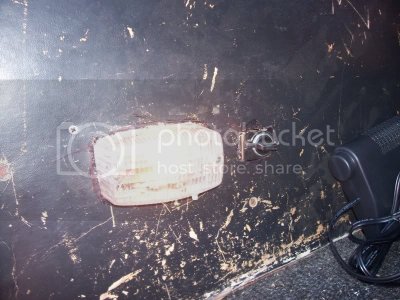

Alright I got it finished. I ended up tapping into the wires down by the kick panel on the drivers side. It was brown and pink/blue (hot). I really appreciate all your help. Here is a picture of where I put the light and cig. lighter.



[broncoRPG]

Alright I got it finished. I ended up tapping into the wires down by the kick panel on the drivers side. It was brown and pink/blue (hot). I really appreciate all your help. Here is a picture of where I put the light and cig. lighter.

About time we got it figured out huh. Now we need to get the ones under my dash hooked up.

Thanks for everyones input.

Ryan
