Need help replacing O2 sensor and Pigtail for O2 sensor

Disclaimer: Links on this page pointing to Amazon, eBay and other sites may include affiliate code. If you click them and make a purchase, we may earn a small commission.

zalewis10

New member
Joined
Feb 13, 2010
Messages
2
Reaction score
0
I have a 1992 full size bronco with the 351 in it my O2 sensor caught fire and the conector or pigtail whatever its called caught fire also where can i find one for a decent price or find one at all??



miesk5

96 Bronco 5.0
Staff member
Moderator
Joined
Oct 18, 2005
Messages
9,078
Reaction score
1,037
Location
Floating in the Pacific
yo ZALE!

I also replied to your similar post in the General Section

Is it the one on driver's side? Do you have just one O2 sensor in it?

Call your local NAPA;

Tell em which O2 sensor and connector you need; or go there with the connector & sensor.

Such as

Oxygen (O2) Sensor

Product Line: Bosch BSH 15729 :

61.49 Each



or

BSH 15716 48.99

Each



---------------

Oxygen Sensor Connector

Product Line: Echlin Ignition

ECH EC98 Price 16.99 Each

Color Code: Black;w/ 4 Wires



or ECH EC97 Color Code: Gray;w/ 4 Wires



--

Identification & Location; "...Regardless of how the engine is mounted in the vehicle, conventional or transverse, the HO2S naming convention stays the same in relationship to engine banks 1 and 2. Bank 1 will always be the bank containing the #1 cylinder. See Fig. 1 in TSB 01-9-7..."

Source: by miesk5 (Al M) at Ford Bronco Zone Forums

this is for a 96 but the "BANK" # is std for most years

http://www.napaonlin...2+50028+2028004

Also; did this cause it to burn?

Fuse E Blown, MIL on, displaying Codes: 172, 173 or 41 for HO2S failure TSB 95-02-11 for 92-95 Bronco & F Series Source: by Ford via Steve83 (Steve, That dirty old truck) at SuperMotors.net


Last edited by a moderator:
OP
OP
Z

zalewis10

New member
Joined
Feb 13, 2010
Messages
2
Reaction score
0
thanks for the info it is very helpfull but its on the passenger side i honestly dont know how many i have but i do know this one caught fire lol but im not exactly surte what caused it i checked all of my fuses and all of them had not blown so im not sure but i would like to figure out what would cause it though.



AdamDude04

New member
Joined
Jan 13, 2009
Messages
828
Reaction score
0
Well the 02 sensor does partner up with the exhaust that gets really hot...

It's easy to tell if you need upstream or downstream - Look for the 02 sensor on the exhaust pipe. The O2 closest to the muffler (back of the car) is downstream. The 02 closest to the motor is upstream.

Easy to change..altho, I had to use a wrench in order to remove mine..with a 3ft breaker bar lol. You could try an 02 socket but my experince is that it just rounds the edges. Wrench will have very little space to work with, but is possible.



miesk5

96 Bronco 5.0
Staff member
Moderator
Joined
Oct 18, 2005
Messages
9,078
Reaction score
1,037
Location
Floating in the Pacific
yo

As Adam wrote the pass side is located on the exh pipe;

I had to use a lot of PB Blaster and a torch on it last fall...

Also; Fuse E Blown, MIL on, displaying Codes: 172, 173 or 41 for HO2S failure TSB 95-02-11 for 92-95 Bronco & F Series Source: by Ford via Steve83

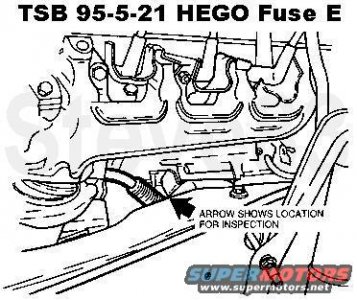

TSB 95-5-21 Fuse "E" Inoperative - ABS Light On - Back-Up Lamps Inoperative - DRLs Inoperative - MIL On - Speedometer Inoperative

Publication Date: MARCH 13, 1995

LIGHT TRUCK: 1992-1995 BRONCO, F-150-350 SERIES

ISSUE: On some vehicles the HO2S wires in the 12A690 (subassembly of the 14B060 battery cable) harness may become chafed and the vehicle could exhibit any one of the following conditions:

ABS light on

Speedometer inoperative

Back-up lamps inoperative

Daytime running lamps inoperative

Trailer battery charge relay inoperative

MIL on, displaying Codes: 172, 173 or 41 for HO2S failure

Inadvertent PCM Self-Test

ACTION: Replace the damaged wire harness and HO2S sensor. Refer to the following procedure for service details.

SERVICE PROCEDURE:

1. Disconnect negative battery cable.

2. Disconnect the solenoid terminal and positive battery cable from the starter.

3. Pull the cable downward to inspect the 12A690 harness for chafing, pinholes, etc. If necessary, remove the convolute and tape from the 12A690 harness located next to the lower RH side engine mount.

4. If the 12A690 harness is damaged, replace the 14B060 assembly (F5TZ-14300-EA) and the HO2S sensor (F4UZ-9F472-A).

5. Inspect Fuse "E" and replace if necessary (D9ZZ-14526-D).

6. Clear all codes stored in memory.

7. Retest and verify the concern has been resolved.


http://www.supermotors.net/getfile/646262/fullsize/tsb950521-hegofusee.jpg

Fuse E is in da Power Disribution Box - Location pic in 92-96;; Miesk5 Miesk5 Note; Located under the hood on the drivers side fenderwell, on driver's side of the air cleaner housing; by Froggmann (Ken P) at froggmann.com
