AOD shift lever leak

[87BRONCXLT302]

Looks like my tranny sprang a leak. Does anybody know the oil seal p/n? Also - Can this seal be replaced from the outside and is there a special tool required?

Thanks in advance for any tips or advice you may offer!



[miesk5]

Yo 87,

Welcome!

AOD Shift Shaft (Linkage) Seal Replacement by entity-unknown @

http://broncozone.com/topic/24324-aod-shift-shaft-linkage-seal-replacement/?do=findComment&comment=127092 in an 87 AOD

...

Sources:

http://www.oreillyauto.com/site/c/search/AT+Shift+Shaft+Seal/03242/C0071.oap?year=1987&make=Ford&model=Bronco&vi=1105883

National - Automatic Transmission Shift Shaft SealLine: NAT | Part # 7929S

• 3 Year Limited Warranty
• Seal
• Ford C6 3 Speed Transmission
• Ford AOD 4 Speed Transmission
• Housing Bore (In): 1.063 Inch
• Material: Nitrile
• Quantity Per Vehicle: 1

TIMKEN 7929S
{Click Info Button for Alternate/OEM Part Numbers}
Automatic trans.
$3.11 Add to Cart SKF 7556
{#3150858, D5AZ7B498A} Grease Seal (Only 10 Remaining)
$4.82
At http://www.rockauto.com/m/mobilecatalog.php?parttype=8648&tab=search

Call napa, advance auto, etc.

"I bought the seal 4 years ago and had a look when I had the pan off changing the internal trans filter;

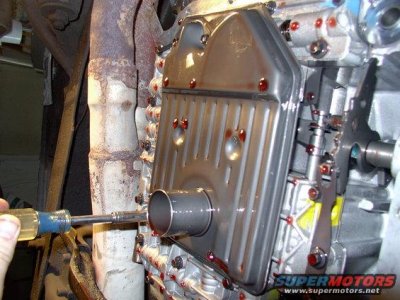

See the shaft at the far right of the photo ? Nearly halfways up ? That's the shaft it's gotta go on. I thought about removing the outer linkage, but it didn't seem like that was enough, but I'm no expert.
I've been well into a 727, but this job looked too ugly for me. One of those jobs where I could well F#@& it up so bad a slightly wet seal and a once a week drip would seem like nuthin'.

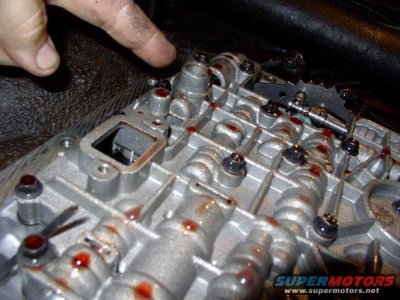

Here's a pic of the toothed plate it runs through, if you want to print these off and take the pics to a trans shop for an estimate;



Tell em' you want an internal filter change "and {yawn} while you're in there, how's about changing this?".
My leak never got worse, so I'm livin' with it until you pioneer this one for the rest of us

 .
Hope that's some kinda help, good luck"
by Sixlitre
...

"I had to replace mine 3 months ago. I got mine from a transmission shop here in Orlando. Here's the number if you want call them. There are actually 2 seals on that shaft. One is for the TV Valve & the other is for the shaft. Alternative Transmission - 407-877-3664, maybe they will mail you one or can give you a correct part#. I went in & told the guy I needed the shaft & TV seals for an AOD & brought them back within a minute - knew exactly what I needed."
